HiPad II
Intelligent Commercial UHD LED Display
| Model Name | HIPADII 0.7 | HIPADII 0.9 | HIPADII 1.2 | HIPADII 1.5 | HIPADII 1.8 | |

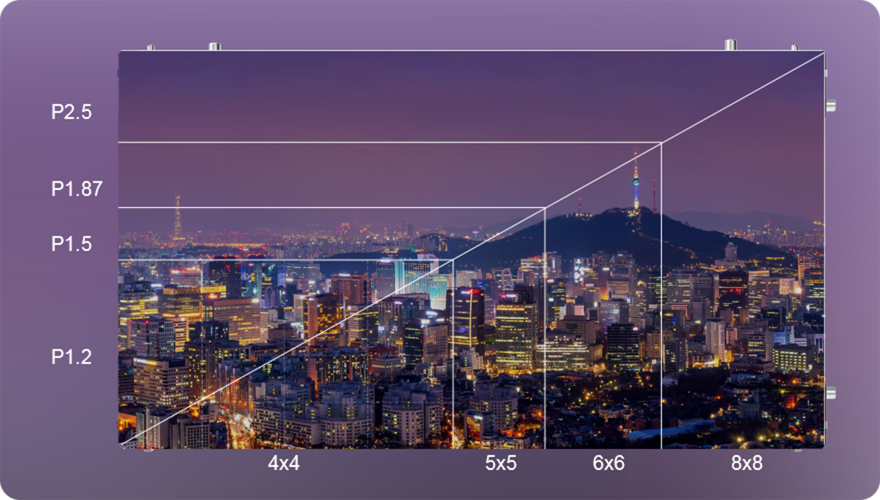

| Basic Parameter | Pixel Pitch | 0.78125mm | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| Pixel Configuration | 4R4G4B -in-1/SMD 3-in-1 | 4R4G4B -in-1/SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | |
| Pixel Density (㎡) | 1,638,400 pixels/m² | 1,108,033pixels/m² | 623,334 pixels/m² | 398,892 pixels/m² | 277,008 pixels/m² | |
| LED Package type | IMD-0.7/SMD0606 | IMD-0.9/SMD0606 | SMD1010 | SMD1010 | SMD1515 | |
| LED Lifetime Hr (24Hr, Luminance 50% down) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | |
| Physical Parameter | Physical Resolution of Module (W × H) | 384 × 216 | 320 × 180 | 240 × 135 | 192 × 108 | 160 × 90 |
| Physical Resolution of Cabinet (W × H) | 768 x 432 | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 | |
| LED Module Dimensions (mm) | 300× 168.75 | 300× 168.75 | 300× 168.75 | 300× 168.75 | 300× 168.75 | |
| No. of Modules Per Cabinet (W × H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 | |

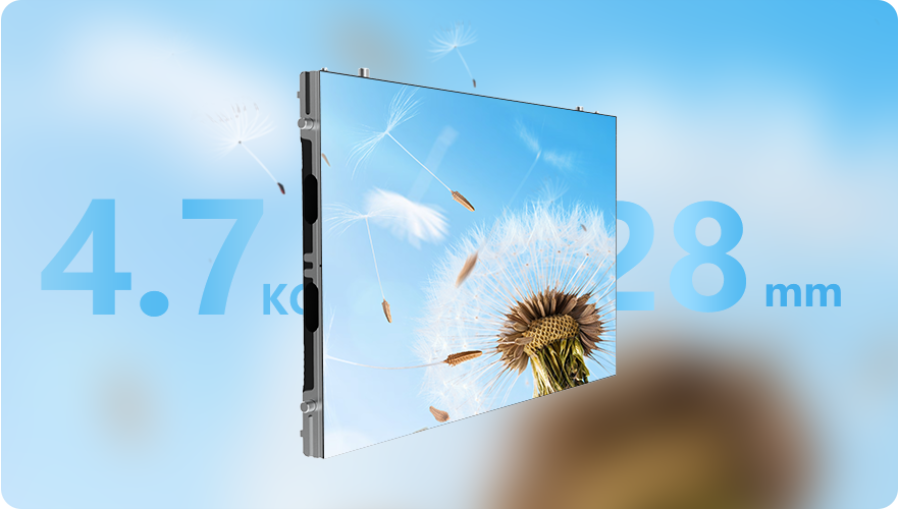

| Cabinet Dimensions (W × H × D) (mm) | 600× 337.5 × 28 | 600× 337.5 × 28 | 600× 337.5 × 28 | 600× 337.5 × 28 | 600× 337.5 × 28 | |
| Weight Per Cabinet (kg/Cabinet) | 4.7±5% | 4.7±5% | 4.7±5% | 4.7±5% | 4.7±5% | |
| Cabinet Material | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | |
| Optical Parameter | Brightness (cd/m²) | >700 | >700 | >800 | >800 | >800 |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 4,500 : 1 | 4,500 : 1 | 4,500 : 1 | |
| Front Mask for C/R | No/GOB | No/GOB | No/GOB | No/GOB | No/GOB | |
| Viewing Angle（H/V） | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | |
| Refresh Rate (Hz) | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | |
| Bit-depth(bit) | 14~16 bit | 14~16 bit | 14~16 bit | 14~16 bit | 14~16 bit | |
| Scan method | 1/36 | 1/36 | 1/27 | 1/32 | 1/30 | |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | |
| Color Temperature - Default | 6500K | 6500K | 6500K | 6500K | 6500K | |
| Electrical Parameter | Max Power Consumption (w/㎡) | 700 | 700 | 800 | 800 | 600 |
| Typical Power Consumption (w/㎡) | 210 | 210 | 240 | 240 | 180 | |
| Power | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | |
| Operation Conditions | Operating Temp/Humidity | -10 - 40℃ / 10% - 80% | -10 - 40℃ / 10% - 80% | -10 - 40℃ / 10% - 80% | -10 - 40℃ / 10% - 80% | -10 - 40℃ / 10% - 80% |
| Storage Temp/Humidity | -20 - 60℃ / 10% - 90% | -20 - 60℃ / 10% - 90% | -20 - 60℃ / 10% - 90% | -20 - 60℃ / 10% - 90% | -20 - 60℃ / 10% - 90% | |
| Cooling | Natural Cooling | Natural Cooling | Natural Cooling | Natural Cooling | Natural Cooling | |
| IP Rating | IP 30 | IP 30 | IP 30 | IP 30 | IP 30 | |
| Certification | Safety | 62368-1, 60950-1 | 62368-1, 60950-1 | 62368-1, 60950-1 | 62368-1, 60950-1 | 62368-1, 60950-1 |
| EMC | Class A | Class A | Class A | Class A | Class A | |
| Service | Servicing | Front | Front | Front | Front | Front |
| Curve Installation | Curve Support (-:concave +: convex) (˚) | / | / | / | / | / |
