Outdoor TES Series LED Display

TES

Outdoor LED Billboard

Home Outdoor TES

Energy Efficient

Durable in Outdoor Environments

High Brightness

Thin & Light

DIP Lamp Self--encapsulation

Environmentally Cooled Design

Energy Efficient

The energy efficient RETOP TES LED produces more light with less power, thus generating less heat to be dissipated, which is effectively reducing display attrition rate and prolonging service life.

Durable in Outdoor Environments

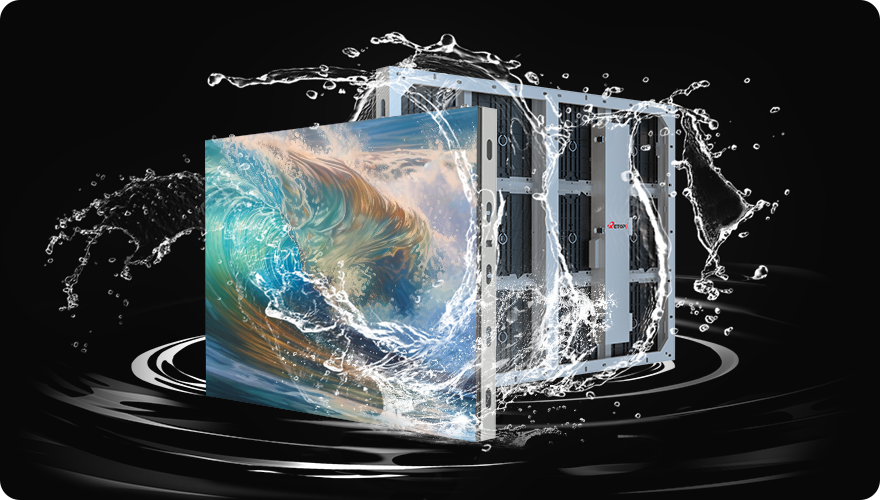

The fully waterproof module ensures theTES LED display series with ongoing perfor-mance when exposed to high temperature, high-humidity and a variety of naturaland unintentional scenarios.

High Brightness

With a high brightness capability of 10000nits . the RETOP TES outdoor billboard seriestakes direct sunlight in its stride-a perfectvisual experience whatever the environ -ment , day , or night .

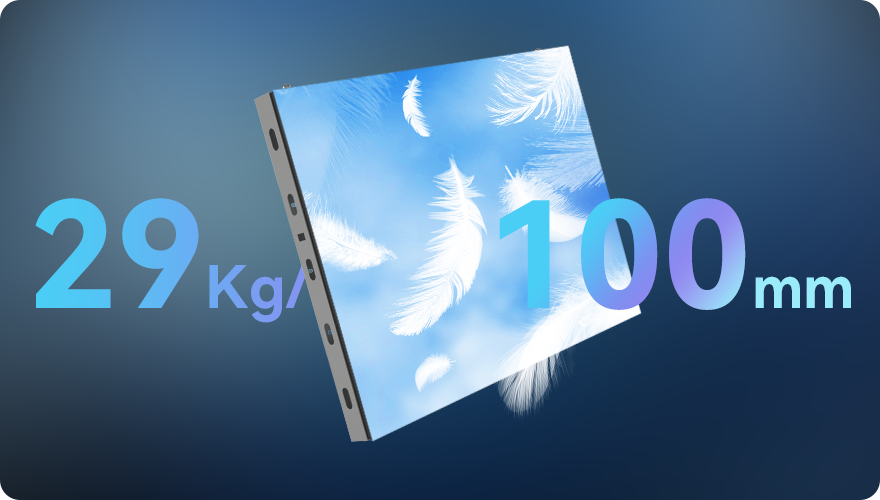

Thin & Light

At just 29kg m2 the ultra-light weightcabinet will effectively reduce the build -na load.

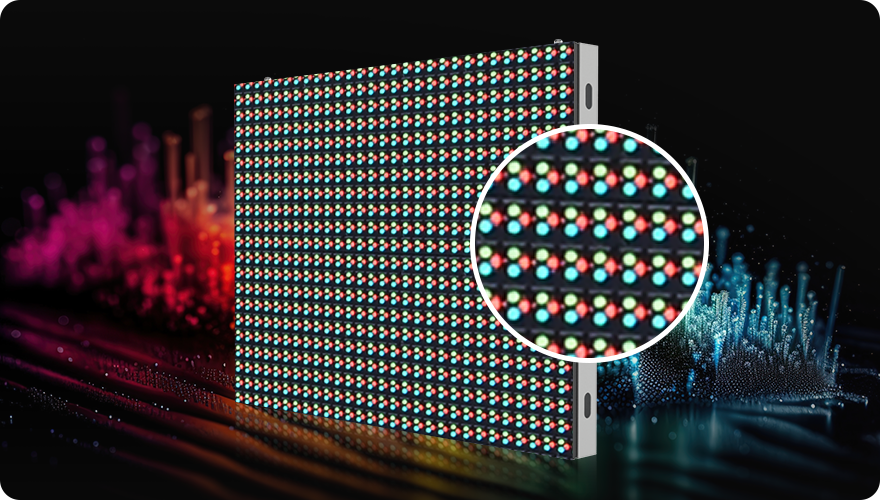

DIP Lamp Self-encapsulation

24 years DIP lamp encapsulation exper -ence making our LEDS are brighter , lastlonger and run more efficiently than com -peting LED billboard manufacturers.

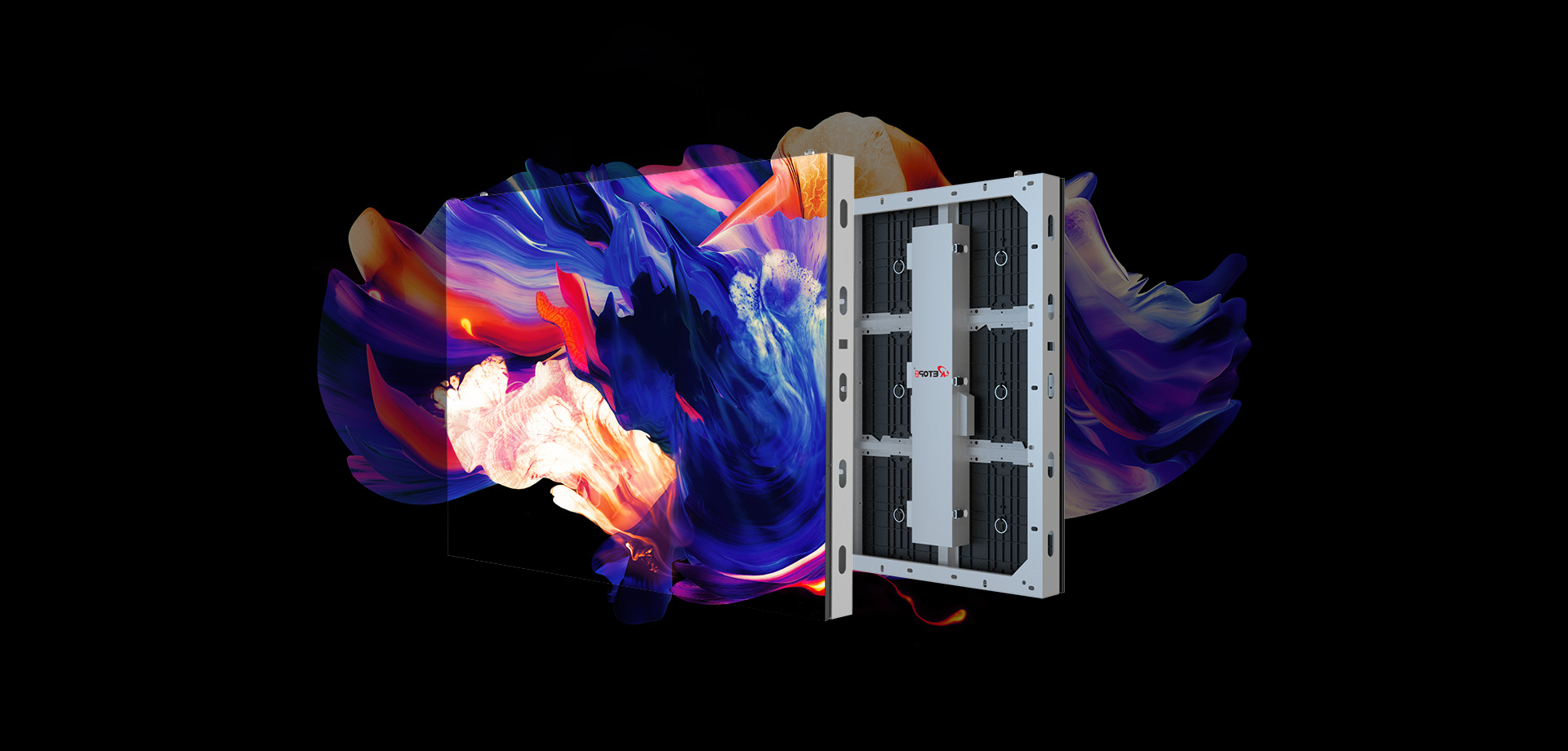

Environmentally Cooled Design

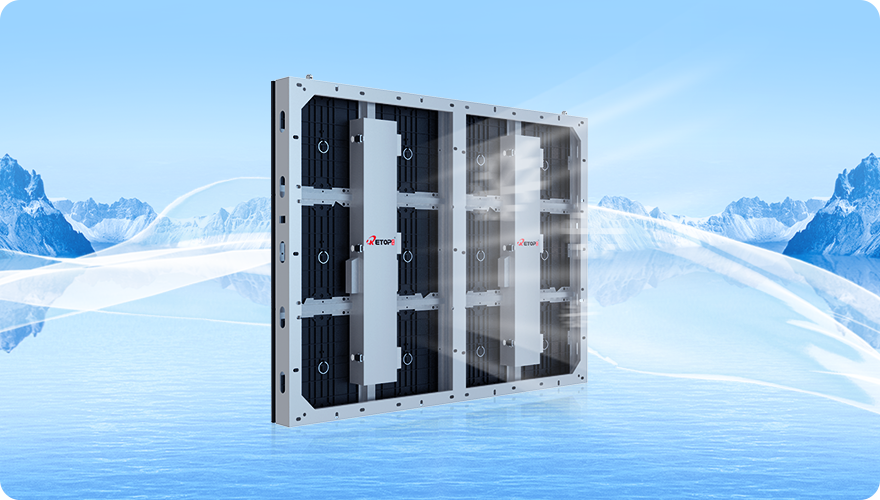

With a 100% self-heat dissipation designour screen doesn't require fans but instead dissipates heat convectively to keep the screen within safe operating parameters while consuming less power.

Applications

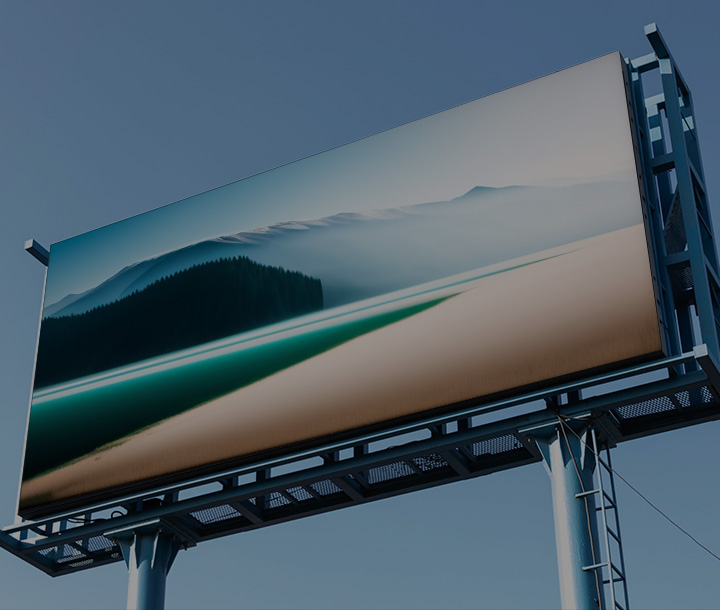

Outdoor LED Billboard

Digital Advertising

Specifications

Model Name		TES 6.6	TES 8	TES 10.66	TES 16
Basic Parameter	Pixel Pitch	6.6mm	8mm	10.66mm	16mm
	Pixel Configuration	SMD 3-in-1	SMD 3-in-1	1R1G1B	1R1G1B
	Pixel Density (㎡)	22,500 pixels/m²	15,625 pixels/m²	8,800 pixels/m²	3,096 pixels/m²
	LED Package type	SMD2727	SMD2727	DIP346	DIP346
	LED Lifetime Hr (24Hr, Luminance 50% down)	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Physical Parameter	Physical Resolution of Module (W × H)	48 × 48	40 × 40	30 × 30	20 × 20
	Physical Resolution of Cabinet (W × H)	192 x 144	160 x 120	120 x 90	80 x 60
	LED Module Dimensions (mm)	320 × 320	320 × 320	320 × 320	320 × 320
	No. of Modules Per Cabinet (W × H)	4 x 3	4 x 3	4 x 3	4 x 3
	Cabinet Dimensions (W × H × D) (mm)	1280 x 960 x 95	1280 x 960 x 95	1280 x 960 x 100	1280 x 960 x 100
	Weight Per Cabinet (kg/Cabinet)	38±5%/46±5%	38±5%/46±5%	38±5%/46±5%	38±5%/46±5%
	Cabinet Material	Aluminum/Steel	Aluminum/Steel	Aluminum/Steel	Aluminum/Steel
Optical Parameter	Brightness (cd/m²)	>6,000	>6,000	10,000	10,000
	Contrast Ratio	4,000 : 1	4,000 : 1	3,000 : 1	3,000 : 1
	Front Mask for C/R	Mask	Mask	Mask	Mask
	Viewing Angle（H/V）	140° / 120 °	140° / 120 °	120° / 60 °	120° / 60 °
	Refresh Rate (Hz)	1920 - 3,840 Hz	1920 - 3,840 Hz	1920 - 3,840 Hz	1920 - 3,840 Hz
	Bit-depth(bit)	14~16 bit	14~16 bit	14~16 bit	14~16 bit
	Scan method	1/6	1/4	1/4	1/1
	Colours	281 trillion	281 trillion	281 trillion	281 trillion
	Color Temperature - Default	6500K±500K	6500K±500K	6500K±500K	6500K±500K
Electrical Parameter	Max Power Consumption (w/㎡)	780	780	350	350
	Typical Power Consumption (w/㎡)	250	250	105	105
	Power	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
Operation Conditions	Operating Temp/Humidity	-20 - 50℃ / 10% - 80%	-20 - 50℃ / 10% - 80%	-20 - 50℃ / 10% - 80%	-20 - 50℃ / 10% - 80%
	Storage Temp/Humidity	-30 - 60℃ / 10% - 90%	-30 - 60℃ / 10% - 90%	-30 - 60℃ / 10% - 90%	-30 - 60℃ / 10% - 90%
	Cooling	Natural Cooling	Natural Cooling	Natural Cooling	Natural Cooling
	IP Rating	IP 65	IP 65	IP 65	IP 65
Certification	Safety	62368-1, 60950-1	62368-1, 60950-1	62368-1, 60950-1	62368-1, 60950-1
Certification	EMC	Class A（optional）	Class A（optional）	Class A（optional）	Class A（optional）
Service	Servicing	Rear	Rear	Rear	Rear
Curve Installation	Curve Support (-:concave +: convex) (˚)	/	/	/	/
